Driving VST3 Plugins Headlessly from Python

Every DAW is, at its core, a program that feeds audio buffers through plugins and writes the result to disk. There is no law that says that program needs a timeline, a mixer view, or a window at all. This post shows how to host real VST3 plugins — the same Neural Amp Modeler, synths, and effects you’d use in Logic or Reaper — directly from a Python script, and render audio through them with one function call.

Everything here works on macOS, Windows, and Linux. The only dependency is Spotify’s pedalboard library, which embeds the JUCE plugin host behind a NumPy-friendly API:

pip install pedalboard numpy

Loading a plugin

VST3 plugins install to a standard location per platform:

Loading one is a single call. I’ll use the free Neural Amp Modeler (NAM) plugin as the running example, because a neural network trained on a real tube amp is the most dramatic possible demo of “professional tool, no GUI”:

import platform, os
from pedalboard import load_plugin

VST3 = {
    "Darwin":  os.path.expanduser("~/Library/Audio/Plug-Ins/VST3/NeuralAmpModeler.vst3"),
    "Windows": r"C:\Program Files\Common Files\VST3\NeuralAmpModeler.vst3",
    "Linux":   os.path.expanduser("~/.vst3/NeuralAmpModeler.vst3"),
}[platform.system()]

amp = load_plugin(VST3)
print(amp.parameters.keys())

That last line prints every automatable parameter the plugin exposes — input_db, bass, middle, treble, output_db and friends — and each one is now a plain Python attribute:

amp.input_db = -3.0   # keep a Vox AC15 just below break-up

Processing audio

A plugin instance is callable. Give it a (channels, samples) NumPy array and a sample rate, get the processed audio back:

import numpy as np
from scipy.io import wavfile

sr, di = wavfile.read("guitar_di.wav")   # DI = "direct input": guitar recorded straight in, no amp
di = di.astype(np.float32) / 32768.0            # int16 -> float32
if di.ndim == 1:
    di = np.stack([di, di])                     # mono -> stereo
else:
    di = di.T                                   # (n, 2) -> (2, n)

amped = amp(di, sr)                             # <- the entire amp rig

wavfile.write("guitar_amped.wav", sr, (amped.T * 32767).astype(np.int16))

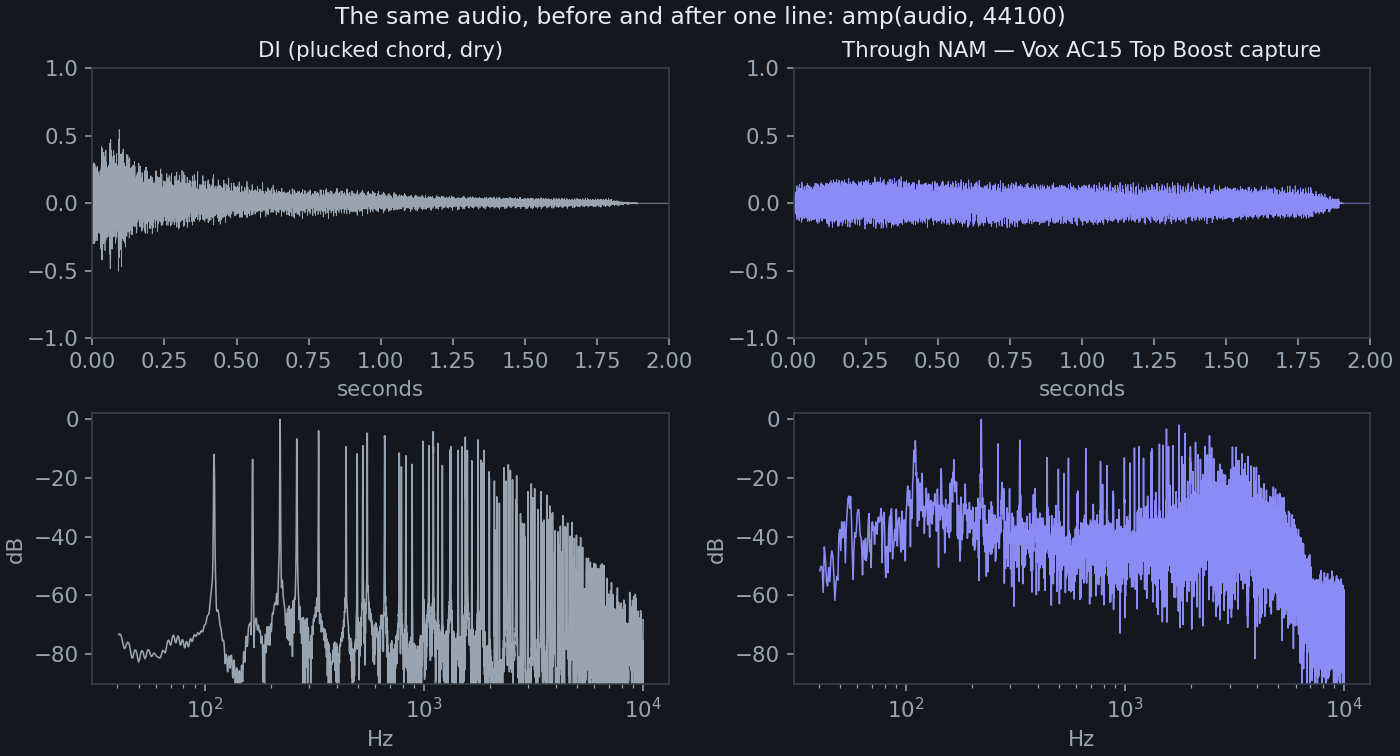

That’s it. Here is a dry plucked chord and the same audio after amp(di, sr) through an AC15 Top Boost capture — note the sustain and compression in the waveform, and the harmonic saturation reshaping the spectrum:

Chain plugins — including pedalboard’s own built-in effects — in a Pedalboard, which is itself callable and behaves like one big plugin:

from pedalboard import Pedalboard, Chorus, Delay, Reverb

rig = Pedalboard([
    Chorus(rate_hz=0.8, depth=0.2, mix=0.5),   # pedal in front of the amp
    amp,                                        # the real VST3
    Delay(delay_seconds=0.318, feedback=0.28, mix=0.16),
    Reverb(room_size=0.85, wet_level=0.24, dry_level=0.76),
])
produced = rig(di, sr)

Pedal order matters exactly like it does on a real pedalboard: chorus in front of the amp is a different sound than chorus in the loop.

Instruments: MIDI in, audio out

Instrument plugins take a list of MIDI messages instead of audio. Note times are in seconds:

from mido import Message

synth = load_plugin("path/to/Vital.vst3")   # any VST3 instrument
notes = [
    Message("note_on",  note=45, velocity=100, time=0.0),
    Message("note_off", note=45,               time=1.5),
]
audio = synth(notes, duration=3.0, sample_rate=44100)

When the setting you need isn’t a parameter

Here’s where headless hosting gets interesting. NAM’s most important setting — which amp capture file to load — is not an automatable parameter. It lives in the plugin’s saved state, normally set by clicking a file picker in the GUI. No GUI, no file picker.

The escape hatch: pedalboard exposes the plugin’s entire serialized state as plugin.preset_data (raw VST3 preset bytes), and you can write it as well as read it. NAM is built on the iPlug2 framework, whose state chunk is documented-by-source: a ###NeuralAmpModeler### marker, a version string, then two length-prefixed strings — the model path and the IR path, each stored as a byte count followed by the text — then the parameter values. So we load the plugin, splice our model path into a fresh copy of its own preset, and hand it back:

import struct

def load_nam(vst3_path, model_path):
    """Load the NAM VST3 with an amp capture pre-selected."""
    p = load_plugin(vst3_path)
    pd = bytes(p.preset_data)
    # VST3 preset container: header, component chunk, then a 'List' index.
    list_off = struct.unpack("<q", pd[40:48])[0]
    comp, tail = pd[48:list_off], pd[list_off:]
    # iPlug2 state: marker, version string, then the model path string.
    i = comp.index(b"###NeuralAmpModeler###") + len(b"###NeuralAmpModeler###")
    vlen = struct.unpack("<i", comp[i:i + 4])[0]
    i += 4 + vlen
    mlen = struct.unpack("<i", comp[i:i + 4])[0]
    path = os.path.abspath(model_path).encode()
    comp = comp[:i] + struct.pack("<i", len(path)) + path + comp[i + 4 + mlen:]
    # Rebuild the 'List' index so chunk offsets/sizes stay consistent.
    n = struct.unpack("<i", tail[4:8])[0]
    entries = b""
    for k in range(n):
        e = tail[8 + k * 20:8 + (k + 1) * 20]
        eid = e[:4]
        off, size = (48, len(comp)) if eid == b"Comp" else (
            48 + len(comp), struct.unpack("<qq", e[4:20])[1])
        entries += eid + struct.pack("<qq", off, size)
    p.preset_data = (pd[:40] + struct.pack("<q", 48 + len(comp)) + comp
                     + b"List" + struct.pack("<i", n) + entries)
    return p

amp = load_nam(VST3, "captures/Vox_AC15_TopBoost.nam")

This exact function renders every guitar and bass track on my generated albums. Two takeaways generalize beyond NAM:

1. preset_data is the universal backdoor. Any state a plugin saves — sample paths, wavetables, IR files — travels through it.
2. You don’t always need to reverse-engineer. The lazy version: open the plugin GUI once (locally, plugin.show_editor() pops the real editor), configure it, save bytes(plugin.preset_data) to a file, and reload those bytes in your headless script forever after. The byte-splicing above is only necessary when you want to swap files programmatically — say, one script rendering through six different amps.

Why bother?

Because once a plugin is a Python object, everything composes. Render the same DI through ten amp captures in a loop and A/B them. Grid-search a compressor’s attack against your mix bus. Batch-process 400 podcast episodes. Or — where this series is headed — generate an entire band’s performance as MIDI events and render it through real amps into a finished, mixed record, from one script, with no DAW open.

Next up: the instrument side — rendering MIDI through FluidSynth, sample-accurately, one bus per band member.
